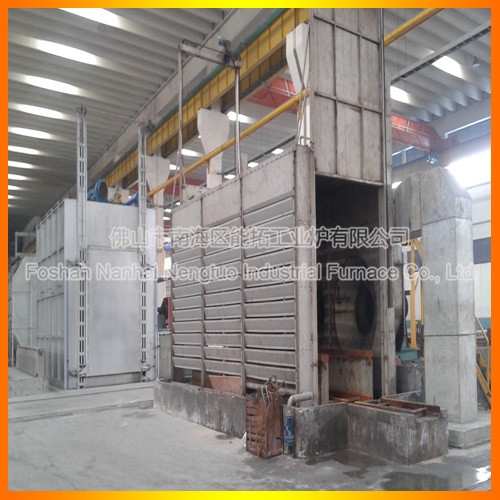

Electric aluminum homogenzing furnace
Features of aluminum homogenizing furnace:
1. Energy saving
2. High efficiency
3. High insulation performance (temperature rise of outer wall:<+-25 Celsius degree)
4. Full automation (PLC control)
5. Low fault
6. Long service life
7. 1 year’s warranty
8. Engineers are available to service machinery overseas.
Specifications of aluminum homogenizing furnace:
|
Name |
Value |
|
Brand |
NT |
|
Model |
NT-JZL |
|
Furnace capacity |
10-70T |
|
Fuel |
gas/oil/electricity |
|
Max. temperature |
620 Celsius degree |
|
Temperature evenness |
5 Celsius degree |
|
Charging method |
by 3D charging car |
|
Cooling method |
air + water mist cooling |
|
Circulation fan |
high temperature circulation fan |
|
Compressed air pressure |
4-6Kgf/cm2 |
|
Temperature control method |
PLC + HMI automatic control |
|
Temperature record |
multi-channel paperless recorder with USB interface |
|
the temperature rise of furnace outer wall max. 25 Celsius degree |
|
|
Voltage |
220V/phase |
|
Power |
50HZ/phase |
|
Place of origin |
Foshan, Guangdong province, China |
|
Certification |
CE, ISO9001 |
|
Warranty |
1 year |
Functions of aluminum homogenizing furnace:
It can reduce die consumption and extrusion force to improve the surface quality and mechanical property of the finished products.
Applications of aluminum homogenizing furnace:
It is used to homogenize aluminum alloy billet in casting process.
After-sales service:
Professional engineers and technicians are available to service machinery at spot.
